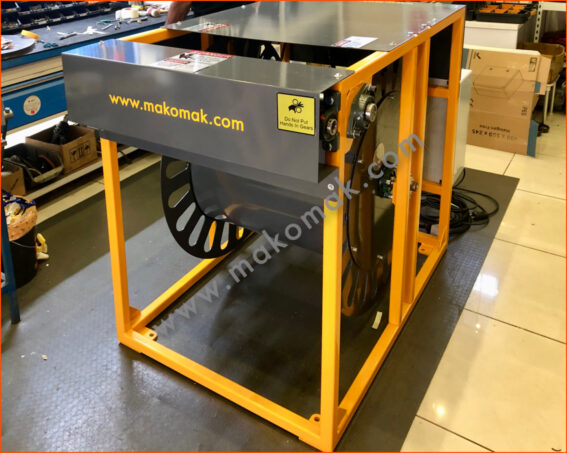

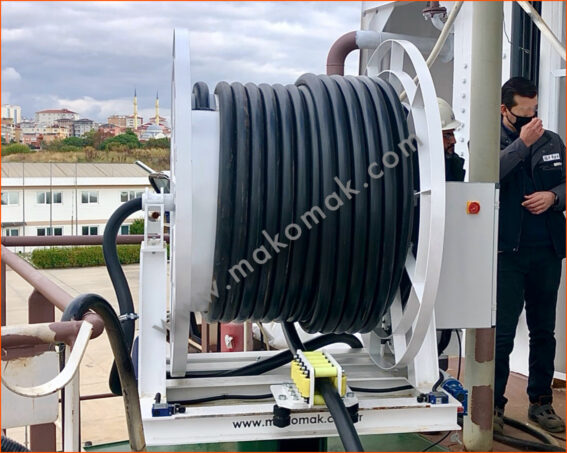

Motorized Cable Reels – M-AT2
MAKOMAK M-AT2 Series Motorized Cable Reels are designed and manufactured for heavy-duty and long-term operations according to cable specifications. The designs and productions can be tailored to the required distance, acceleration, speed, and working direction for transferring energy or data to moving machines.
The high communication ring capacity and long-length design provide advantages for various applications. Cable centering rollers with guiding systems are ideal for long-length working with high cable diameters.
Standart Features:
- Motorized cable reels for long-distance working capability
- Solutions based on acceleration, speed and power
- Signal and energy transfer
- Paint, electro galvanize or hot-dip galvanized coating suitable for the working area
- Operating temperatures: -30°C to 90°C
- Adjustment possibility with driver control
- Communication ring systems suitable for working capacity between 35 and 600 Amperes
Optional Features:
- Guidance arm
- Mounting arm
- Cable stopper switch system
- 360° rotating bottom plate
- Terminal box
- Additional protection and sealing suitable for weather conditions
Application Areas for Motorized cable reel:
- Cable applications
- Transfer cars

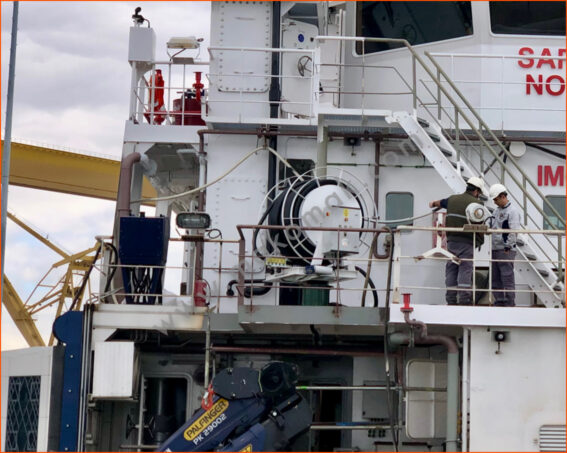

- Shore energy cable supply for ships

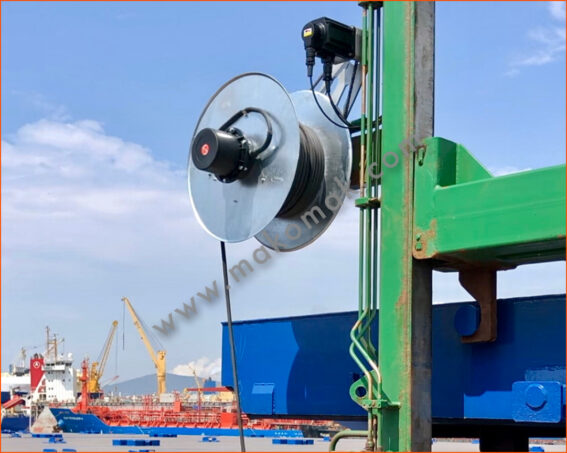

- Port Gantry Cranes
- Energy supply on vehicle-mounted equipment
- Tunnel Boring Machines (TBM)
